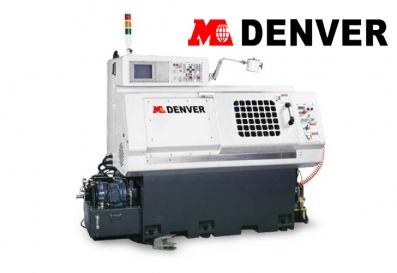

SL-250, 450, 540, 650
Feature
SL-250 (Gang type)Â Â
High Performance Lead To Increased Productivity
The machine construction of high-quality casting iron that is tempered to relieve stress. Slideways are hardened with high frequency heat treatment and ground to assure high operation performance and long service life.
Spindle lock - Special spindle lock design quick and easy spindle chuck change. |
Gang + Turret Tool System (OPT)Â - Gang Type + Turret flexible for every machining. |
Working Sample - Suitable machining for optical element medical care appliances, automobile and motorbike component and 3C parts. |
SL-450, SL-540, SL-650
Perfect cutting ability reflect
Designed and manufactured by the concept of pursuing excellence, the CNC lathe has been fully recognized by domestic and overseas customers for their outstanding performance. The series is a profitable performer for parts machining in automotive, motorbike aviation (aerospace), and machinery industries.
Servo turret- The turret positioning is driver by a servo motor combined with hydraulic locking, providing fast tool change and high positioning accuracy. The servo turret is also excellent for heavy cutting and superior in stability. |
Precision Ball Screw- The X-axis movement is transmitted by C1 class ball screw and the Z-axis employs pre-tensioned to reduce thermal deformation to a minimum while assuring superior feed accuracy. |
Electric components - The control circuit employs good quality (or equivalent) electronic parts. assuring maximum control and stability under long time operation and long service life. |
Optimization structure design - X/Y axis with pretension design, ball screw of X, Z axis standard with C1, C3 class and P4 class high precision bearing. It provides high accuracy of machining jobs and suppression thermal displacement. |
Manually hydraulic tailstock - Standard with manually tailstock can be moved and fixed according to work piece, provide more stable and rigidity of work piece clamping. Optional with programmable tailstock and removable points live center, provide more convenience application. |
Extra Wide Span Between Linear Ways - The X, Z-axis are equipped with Japanese high precision linear ways, featuring feed. This combines with extra wide span between linear ways one Z-axis for greatly upgrading cutting rigidity and stability. (Only for SL-54051, 54060) |
Unit: mm / inch
Mode | SL-250(42) | SL-450(52) | SL-540(51) | SL-540(60) | |
Capacity | Swing Over Bed (ØD) | 250 | 450 | 540 | 540 |
Swing Over Top Slide (ØD) | 120 | 260 | 280 | 280 | |
Center Distance | - | 370 | 460 | 460 | |
Standard Working Diameter (ØD) | 90 | 210 | 210 | 210 | |
Maximum Turning Length | 120 | 350 | 460 | 460 | |
Spindle Motor | AC 7.5Kw/ 10HP | AC 11Kw/ 15 HP | AC 11/ 15HP | AC 11/ 15HP | |
Spindle speed (Max) | 100~5000RPM | 4200RPM | 4500RPM | 4200RPM | |
Spindle Nose | A2-5 | A2-6 | A2-6 | A2-6 | |
Spindle Hole (ØD) | 52 | 65 | 62 | 75 | |
Through Bar Capacity (ØD) | 42 | 52 | 51 | 60 | |
Front Bearing I.D. Of Sp. (ØD) | 70 | 100 | 100 | 100 | |
Chuck Size | OP - 6"(F-48C) | 8" | 8"(F-58C) | 8"(F-58C) | |
Coolant Pump Motor | 1/2 HP | 1.5 HP | 3/4 HP | 3/4 HP | |
Tailstock | Tailstock Taper | - | MT#4 | MT#4 | MT#4 |
Tailstock Quill Dia. (ØD) | 80 | 65 | 65 | ||
Tailstock Quill Travel | 70 | 50 | 50 | ||
Travel | X-axis Travel | 250 | 185 | 170+45 | 170+45 |
Z-axis Travel | 250 | 375 | 520 | 520 | |
X-axis Rapid Speed | 15m/min | 20m/min | 24m/min | 24m/min | |
Z-axis Rapid Speed | 15m/min | 20m/min | 24m/min | 24m/min | |
Turret | Least Input Increment | 0.001 | 0.001 | ||
Square Shank Tools Size | 20 | 25 | |||
Max. Boring Tool Dia (ØD) | 20 | 32 | 32 | 32 | |
Numbers Of Tool Position | 8+Gang | 10 | 10 (12 OPT) | 10 | |
Tool Change Time | 1.1 sec | 1.2 sec | |||
