RHL-960, 1120 X 2000, 3000, 4000, 5000
5 guide way / Spindle bore: 9", 10",12", 15", 20" / Bed width: 49"

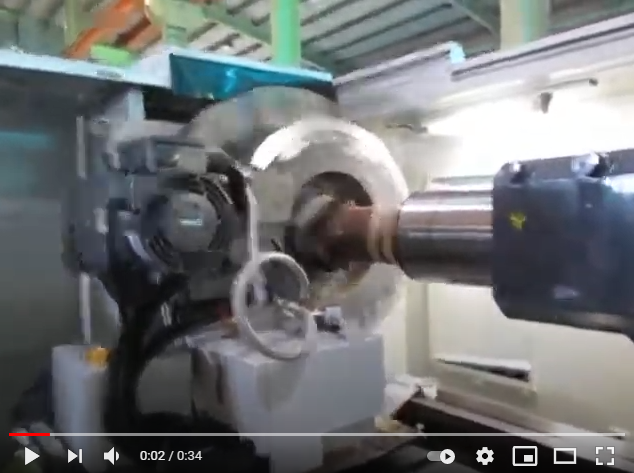

Strong, stable, smooth, and efficient processing advantages.
Feature
R&D Innovation Structural Multi Guide Way   Â
The Bed is designed with 5 guide ways.
Processing guide ways won't interfere with the guide way for workpiece.
The design of leadscrew set in the middle let the effect of saddle movement to be smoother.
Special design for apron support guide way to provide larger cutting capacity with heavier load.
Lathe over 4 meter will be mounted an extra linear way to strength the support capacity,
increase the processing accuracy, and reduce the abrasion of ball screws.
Once completed processing procedures
TailstockÂ
Self-Rotary quill, when the main spindle turns, the tailstock's quill turns simultaneously (synchrony) with the main spindle, which lightens the load while raising stability.
Mounted with taper roller bearings can bear heavy duty cutting.
The quill is hardened and precision ground, adopted worm gear type design for quill's extending and retracting matched with gear motor, that is controlled easily and has the effect of anti-retract function on quill.
The main body of tailstock matched with gear motor can move smoothly.
The base of tailstock matched with rack equipment has an effect to prevent the tailstock body from retraction.
Unit: mm / inch
 | Model | RHL-960 | RHL-1120 | |||
Capacity | Max. Swing over Bed | 960 (37.78") | 1120 (44.09") | |||
Center-Center | 2000 (78.74") 3000 (118.11") 4000 (157.48") 5000 (196.85") | |||||
Max. Roll Cutting Dia. | 800 (31.5") | 1000 (39.37") | ||||
Min. Roll Cutting Dia. | 63 (2.48") | 100 (4") | ||||
Max. Cutting Length | 2000 (78.74") 3000 (118.11") 4000 (157.48") 5000 (196.85") | |||||
Bed Way | 5 Guide Way | |||||
Bed | Width of Bed | 1250 (49.21") | ||||
Length of Bed | 4000 (157.48") 5000 (196.85") 6000 (236") 7000 (275.59") | |||||
Headstock | Spindle bore diameter | ø152(6") | OP:ø230(9") | OP:ø255(10") | OP:ø312(12") | OP:ø380(15") |
Spindle nose | A2-11 | A2-15 | A2-15 | A2-20 | A2-20 | |
Range of spindle speed | 6-500rpm | 7-350 rpm | ||||
1. Range speed | 6-35rpm | 7-20 rpm | ||||
2. Range speed | 19-112rpm | 19-60 rpm | ||||
3. Range speed | 70-350rpm | 40-121 rpm | ||||
4. Range speed | 226-500rpm | Â 11-350 rpm | ||||
 | * Spindle speed changed by different horse power. | |||||
No. of spindle speed | Auto 4 Steps / Hydraulic | |||||
Travel | X-axis travel | 400 (15.75") (by Hydraulic turret H4) | ||||
* X-axis travel changed by different turret. | ||||||
Z-axis travel | 2000 (78.74") 3000 (118.11") 4000 (157.48") 5000 (196.85) | |||||
 * Z-axis travel changed by different turret, chuck or tailstock. | ||||||
Dia. of X-axis ball screw | 40 mm, pitch 10 mm | |||||
Dia. of Z-axis ball screw | 63 mm, pitch 10 mm | |||||
TURRET | Turret type | Hydraulic turret H4, V12, H4-VDI | ||||
Tool shank / Numbers | 32 x 32 (1.23" x 1.23") (OP: 40 x 40 (1.57" x 1.57")) | |||||
Tailstock | Quill Dia. | 150 (5.9") (OP: 200 (7.87")) | ||||
Quill travel | 300 (11.81") | |||||
Quill taper | MT6 | |||||
Quill movement | Manual / electric (OP: Hydraulic) | |||||
Body movement | Electric (OP: Hydraulic) | |||||
Lock-type | Â Manual (OP: Hydraulic) (option) | |||||
Motor | Spindle Motor | Continuous / 30min rating | ||||
X-axis servo Motor | Â 4 kw | |||||
Z-axis servo Motor | Â 4 kw | |||||
Tailstock body drive Motor | 0.4 kw | |||||
Tailstock quill drive Motor | 0.2 kw | |||||
Hydraulic pump | (1.5kw) (2HP) | |||||
Coolant pump | Â 1.275 kw (1.7HP) |
