DHK SERIES - CNC HEAVY DUTY POWERFUL LATHE

Product Description
Specification
Video demo
Download

DHK 960, 1120, 1220, 1320, 1420, 1520, 1620 x 1500, 2000, 3000, 4000, 5000, 6000

Feature

This is a heavy-duty precision CNC lathe that has the function of output full horse power during low & high speed, available for big, special parts and mold work pieces.
The structure of Bed is adopted high toughness meehanite cast iron; stabilize properly parallel precision, Bed ways are induction hardened and ground.
The slide way and ball screw can be lubricated automatically by central lubrication system. Oil flow and lubrication frequency can be set as desired. An alarm occurs in case of lack of oil.
The coolant system delivers high pressure coolant to flush chips and extend tool service life.
Mechanical and electrical are designed all in one.

Unit: mm / inch

Item / Model width of Bed 32" (810)		DHK-960, 1120, 1220, 1320, 1420, 1520, 1620
		1500		2000				3000
Capacity	Max. swing over bed	960 (37.8")　1120 (44")　1220 (48")　 1320(51.97") 1420 (55.91")　1520 (59.84")　1620(63.78")
	Center height	480 (18.9")　560 (22")　610 (24")　 660 (25.98")　 710 (27.95")　760 (29.92")　810(31.89")
	Swing over cross slide	550 (21.65")　710 (27.95")　810 (31.89")　 910 (35.83)　 1010 (39.76")　1110 (43.7")　1210 (47.64")
	Z-axis travel	1500 (59")		2000 (78.74")				3000 (118.11")
	* Z-axis travel changed by different turret, chuck or tailstock.
	Distance between centers	1500 (59")		2000 (78.74")				3000 (118.11")
	Length of bed	3960 (155.91")		4460 (175.6")				5460 (215")
	Width of bed	810mm (31.88")
Headstock	Spindle bore	ø152 (6")	OP:ø230 (9")		OP:ø255 (10")		OP:ø312 (12")		OP:ø380 (15")
	Spindle nose	A2-11 OP: A2-15	A2-15 OP:A2-20		A2-15 OP:A2-20		A2-20		A2-20
	Range of spindle speed	6-500 rpm				7-350 rpm
	1. Range speed	6-35 rpm				7-20 rpm
	2. Range speed	19-112 rpm				19-60 rpm
	3. Range speed	70-350 rpm				40-121 rpm
	4. Range speed	226-500 rpm				11-350 rpm
	* Spindle speed is changed by different horse power.
	No. of spindle speeds	Auto 4 Steps / Hydraulic
Travel	X-axis travel	600 (23.62") for hydraulic turret: H4 * X-axis travel changed by different turret.
	Dia. of X-axis ball screw	40 mm, pitch 10 mm, C3 level
	Dia. of Z-axis ball screw	63 mm, pitch 10 mm
	X, Z-axis rapid feed	5000 mm/min (196.85"/min)
	X, Z-axis cutting feed rate	3000 mm/min (118.11"/min)
OP-Turret	Turret type	OP: Hydraulic Turret H4,H6,V8,V12,H4-VDI / Power Turret
	Tool shank / Numbers	32x32 (1.23"x1.23")
Tailstock	Quill dia.	200 (7.87")
	Quill travel	300 (11.81")
	Quill taper	MT6
	Body movement	Carried by saddle
	Body lock-type	Manual (OP: Hydraulic type)
	Quill movement	Motorized (OP: Hydraulic type)
	Base movement	Motorized
Motor	Spindle Motor	Continuous 22 kw (OP:30~50 kw)
		30 min Rating 22 kw
	X-axis servo Motor	3 kw
	Z-axis servo Motor	4 kw
	Hydraulic pump	1.5 kw (2HP)
	Coolant pump	1.275 kw (1.7HP)

Download Here

Hotline 1	0934 456 198
Hotline 2	0934 456 198

TUYET NGA COMPANY LTD

TUYET NGA COMPANY LTD

DHK SERIES - CNC HEAVY DUTY POWERFUL LATHE

Sản phẩm liên quan

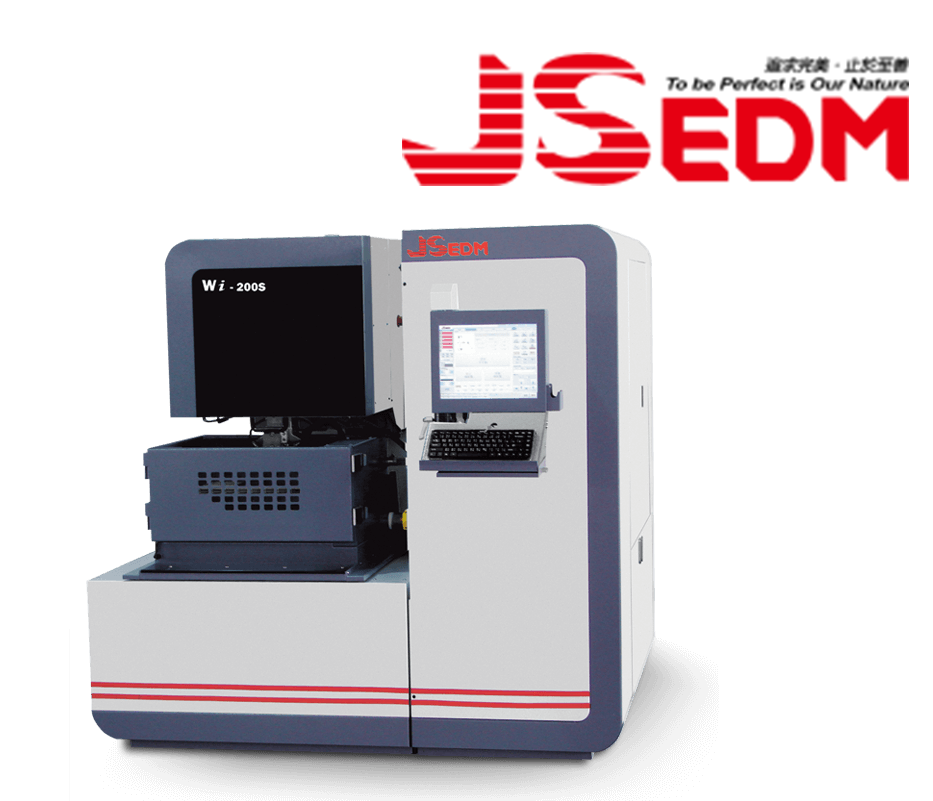

WIRE CUT EDM MACHINE

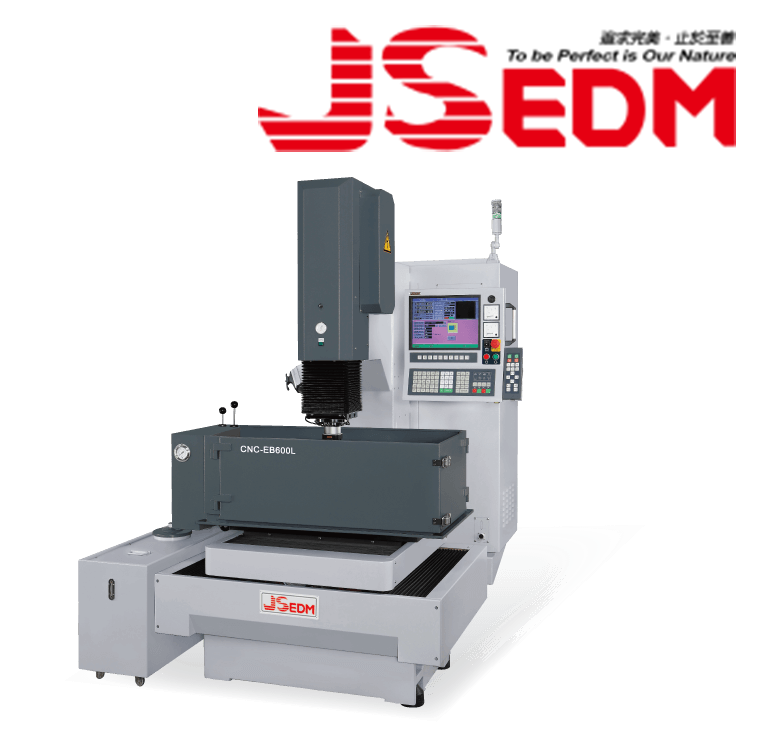

CNC-EB EDM MACHINE

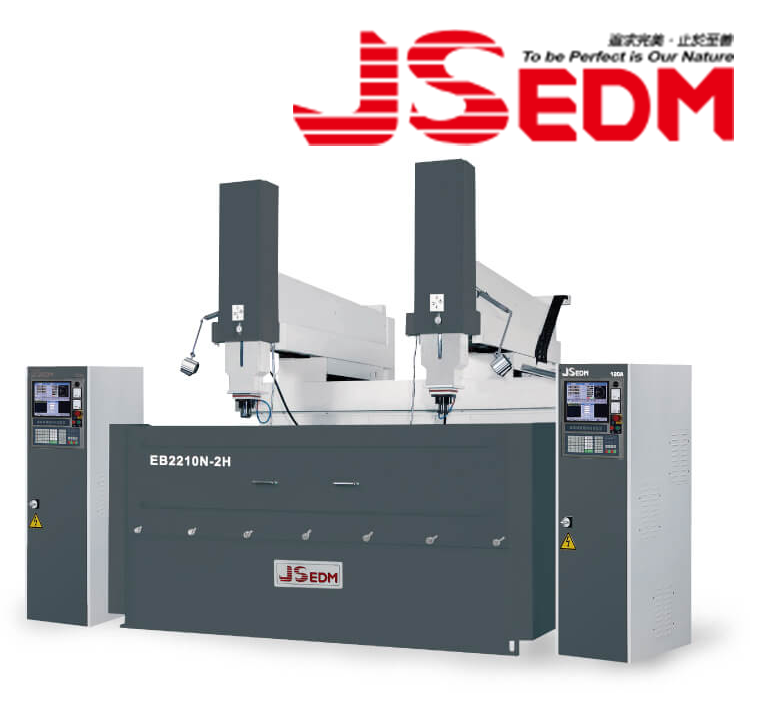

ZNC-EB EDM MACHINE
