SLANT TURN SERIES

Heavy-duty cutting of large, long shaft workpieces
CNC turning center SLANT TURN 500M

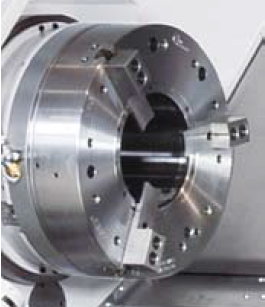

• Wide range of available spindle bores: φ185, φ275, φ320, and φ375 mm
• Max. Swing φ1040 mm, Max. machining diameter φ910 mm, and Max. spindle power 45kw (30min/rating) with 7000 N・m Max. torque
• Linear roller guides on the X-axis and Z-axis not only provide high rigidity but also precision cutting even at high speed feedrates.
• The maximum available size steady rest is φ410mm - largest for this turning center class.
• The rotary tool spindle of the SLANT TURN 500M,550M,600M has a maximum speed of  4000 rpm and output of 7.5 kW to provide performance comparable to a small machining center.
• Chucker version is also available.
• The MAZATROL SmoothC CNC sytem, designed for unsurpassed ease of operation, is standard equipment.
  MAZATROL SmoothG is optionally available.
  The MAZATROL SmoothG CNC is equipped with the thermal shield and the Mazak voice adviser.
  * Standard CNC varies by market.

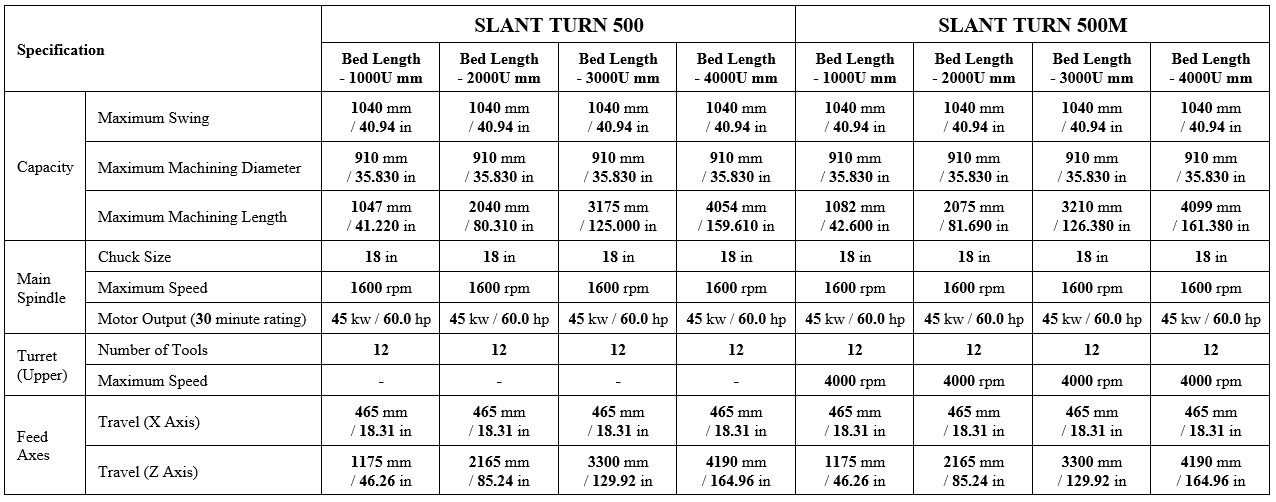

SERIES: SLANT TURN 500, SLANT TURN 500M, SLANT TURN 550, SLANT TURN 550M, SLANT TURN 600, SLANT TURN 600M, SLANT TURN 800.
