Increased column sizes +The uniquely designed column features greater sizes in its class thereby providing added rigidity. Increased and widened fastening surface on base +Â The column is a versed "Y"Â shape with extra wide and large structure for superior stability and firmly support for the column. Widened, oversized slideways of spindle head +The increased mat surface between spindle head and column achieves perfect structural ratio for outstanding stability. This, combined with a proper counter-balancing design, fully eliminates gravity lowering problems on the spindle head while upgrading machine accuracy and rigidity. |

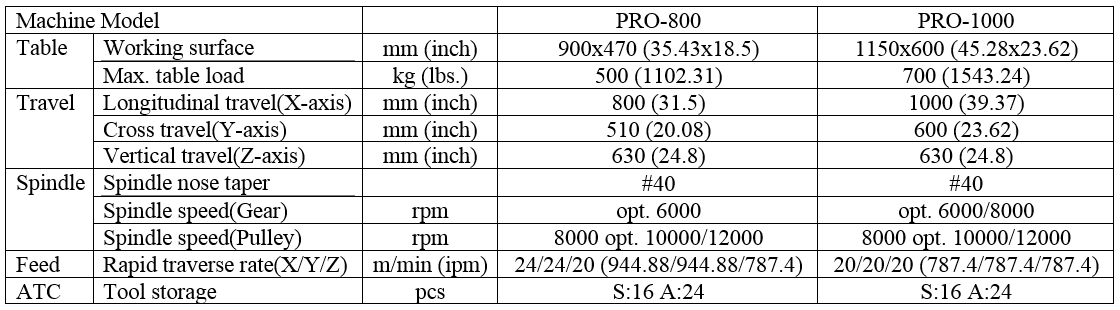

Z-axis servo motor upgraded and counter-balance block (opt.) +Special package to improve the precision of Z-axis movement in high speed machining. Z-axis servo motor connected directly to ballscrew ​+No more Z-axis timing belt, the servo is connected to the ballscrew. There is no more need to maintain or replace the timing belt. Unique column design for greater rigidity and stability +Specially designed upside down column construction with column base measures 1000mm width 54% increase stability.The oversized column and base provide 1000 x 600 x 630 mm work envelop. (Model PRO-1000) |
