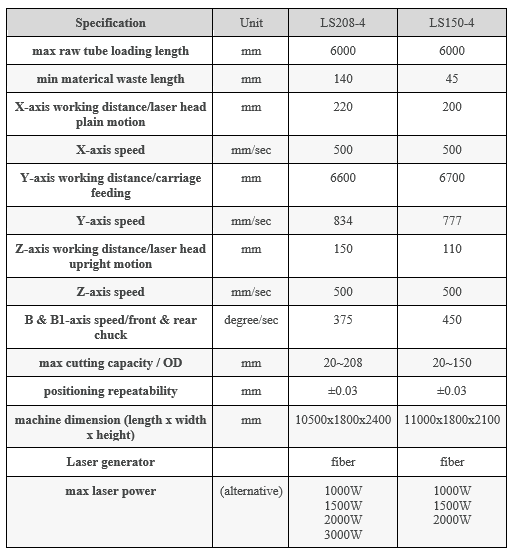

LS150-4 filber laser cutting machine
- max capacity : OD20~150 mm
- max loading length @6000 mm
- min material waste (rear end) @45 mm
- 5 servo axes synchronization
1.fiber laser head :
- automatic calibration
- plain & upright motion by servo drive with speed @500 mm/sec
- capable of cutting circularã€squareã€rectangularã€elliptic and flat oval tube
- positioning repeatability ±0.03 mm
2.front chuck :
- exclusive design with international patent rotation by servo drive
- clamping by pneumatic
- coupling design, optimized for clamping either circular or rectangular/square/elliptic/flat oval tube
3.tube loader facilitates job scheduling and applicable to tube with different shape and OD
4.carriage :
- feeding by servo drive with speed @777 mm/sec and max working distance @6700 mm
- rear chuck with exclusive design and international patent
- rotation by servo drive
- clamping by pneumatic
- coupling design,optimized for clamping either circular or rectangular/square/elliptic/flat oval tube
5.safety barrier driven by pneumatic, ensures safety in addition to easy access for maintenance
6.customized unloader adapting to tube with variable shape and OD
