DHL SERIES - CNC HEAVY DUTY POWERFUL LATHE

Product Description
Specification

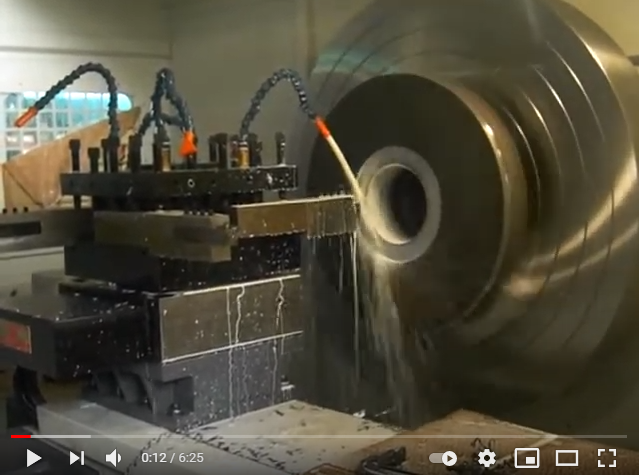

Video demo
Download

DHL 960, 1120, 1220~1420 x 1500, 2000, 3000, 4000, 5000, 6000

Feature

One-piece casting base is for processing capacity which to be more stable.
This is a heavy-duty precision CNC lathe that has the function of output full horse power
during low & high speed, available for big, special parts and mold work pieces.
The structure of bed is adopted high toughness Meehanite cast iron; stabilize properly
parallel precision, bed ways are induction hardened and ground.
The slide way and ball screw can be lubricated automatically by central lubrication system. Oil flow and lubrication frequency can be set as desired. An alarm occurs in case of lack of oil.
The coolant system delivers high pressure coolant to flush chips and extend tool service life.
Mechanical and electrical are designed all in one.

Unit: mm / inch

Item / Model Width of Bed 24" (610)		DHL-960, 1120, 1220, 1320, 1420
		1500		2000	3000
Capacity	Max. swing over bed	960 (37.8")	1120 (44")	1220 (48")	1320 (51.97")	1420 (55.91")
	Center height	480 (18.9")	560 (22")	610 (24")	660 (25.98")	710 (27.95")
	Swing over cross slide	600 (23.6")	760 (29.92")	860 (33.86")	960 (37.8")	1060 (41.73")
	Z-axis travel	1500 (59")		2000 (78.74")	3000 (118.11")
	* Z-axis travel changed by different turret, chuck or tailstock.
	Distance between centers	1500 (59")		2000 (78.74")	3000 (118.11")
	Length of bed	3450 (135.83")		3950 (155.51")	4950 (194.88")
	Width of bed	610 (24")
Headstock	Spindle bore	ø152 (6")	OP:ø230 (9")	OP:ø255 (10")	OP:ø312 (12")	OP:ø380 (15")
	Spindle nose	A2-11 OP: A2-15	A2-15 OP:A2-20	A2-15 OP:A2-20	A2-20	A2-20
	Range of spindle speed	6-500 rpm			7-350 rpm
	1. Range speed	6-35 rpm			7-20 rpm
	2. Range speed	19-112 rpm			19-60 rpm
	3. Range speed	70-350 rpm			40-121 rpm
	4. Range speed	226-500 rpm			11-350 rpm
	* Spindle speed is changed by different horse power.
	No. of spindle speeds	Auto 4 Steps / Hydraulic
Travel	Cross slide travel (X-axis travel)	600 (23.62") for hydraulic turret: H4 * X-axis travel changed by different turret.
	Dia. of X-axis ball screw	32 mm, pitch 5 mm, C3 label
	Dia. of Z-axis ball screw	63 mm, pitch 10 mm, C3 label
	X, Z-axes rapid feed	5000 mm/min (196.85"/min)
	X, Z-axes cutting feed rate	3000 mm/min (118.11"/min)
Turret	Turret type	OP: Hydraulic Turret H4,H6,V8,V12,H4-VDI / Power Turret
	Tool shank / Numbers	32x32 (1.23"x1.23")
Tailstock	Quill dia.	125 (4.92")
	Quill travel	300 (11.81")
	Quill taper	MT6
	Body movement	Carried by saddle
	Body lock-type	Manual (OP: Hydraulic type)
	Quill movement	Manual (OP: Hydraulic type)
	Base movement	Manual
Motor	Spindle Motor	Continuous 22 kw (OP:30~50 kw)
		30 min Rating 26 kw
	X-axis servo Motor	3 kw
	Z-axis servo Motor	4 kw
	Hydraulic pump	1.5 kw (2HP)
	Coolant pump	1.275 kw (1.7HP)
