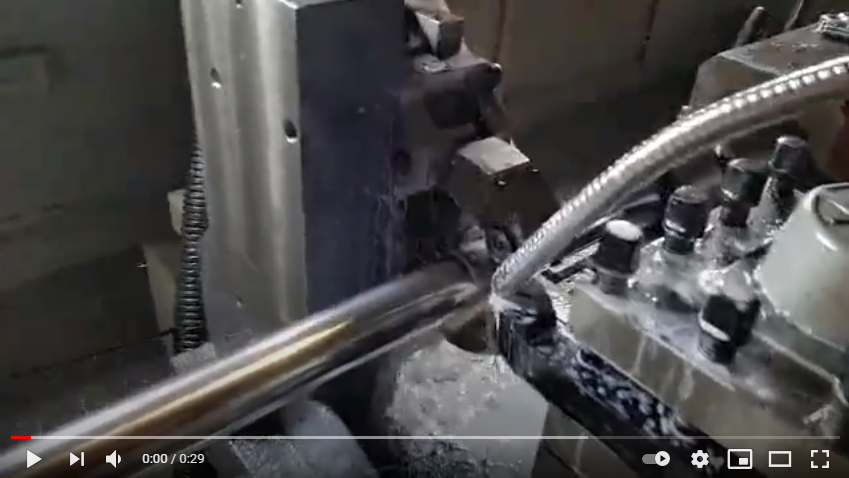

AL-460 / 560 X 500, 750, 1000, 1500
Feature
 | Model | AL-460 / 560 | |
500 | 750 | ||
Capacity | Swing over Bed | 460 (18.11") / 560 (22.05") | |
Swing over cross slide | 230 (9.06") / 330 (13") | ||
Distance between centers | 500 (19.69") | 750(29.53)Â | |
Width of Bed | 317 (12.48") | ||
Length of Bed | 1490(58.66") | 1740(68.5")Â | |
Headstock | Spindle bore, spindle speed | Manual spindle (gear type): 70 (2.76),1800 rpm - variable speed | |
 OP: High speed spindle: 60 (2.36"), 3000 rpm - variable speed, | |||
※ Chuck speed must match with spindle speed 3000 rpm. | |||
Spindle nose | A2-6 | ||
Range of spindle speed | 1800 rpm / OP.3000rpm | ||
Travel | X-axis travel (cross slide travel) | 230(9.06â€) / 280 (11.03â€) | |
Z-axis travel (longitudinal travel) | 500 (19.67") | 750(29.53) | |
â—Ž Z-axis travel changed by different turret, chuck or Tailstock. | |||
X-axis ball screw diameter | 25 mm, pitch 5 mm | ||
Z-axis ball screw diameter | 50 mm, pitch 10 mm | ||
Feed | X-axis rapid feed | 5000 mm/min (196.85" /min) | |
Z-axis rapid feed | 7500 mm/min (295.28" /min) | ||
X-axis cutting feed rate | 0-3000 mm/min (118.11" /min) | ||
Z-axis cutting feed rate | 0-5000 mm/min (196.85" /min) | ||
TURRET | Tool station, tool shank | Â Â Manual 4-way 20x20 (0.79"x 0.79") | |
Tailstock | Quill diameter | 52 (2.05") | |
Quill travel | 130 (5.12") | ||
Taper of center | MT.4Â | ||
Motor | Spindle Motor | 7.5kw (10HP) | |
X-Axis servo Motor | 1.2 kw (1.6HP) | ||
Z-Axis servo Motor | 1.2 kw (1.6HP) | ||
Coolant pump | 0.1 kw (1/8 HP) | ||
Optional: Hydraulic pump Motor | Optional: 1.5 kw (2HP) | ||
